Creating a user-friendly Data Validation in Excel Displaying help out of the way

Content

Introduction

I regularly design worksheets into which a user has to enter information. Of course when I do so, I make extensive use of:

  • Cell styles
  • Proper labelling
  • Data Validation

This post is mainly about leveraging the Data Validation Input Message. See the animated gif below:

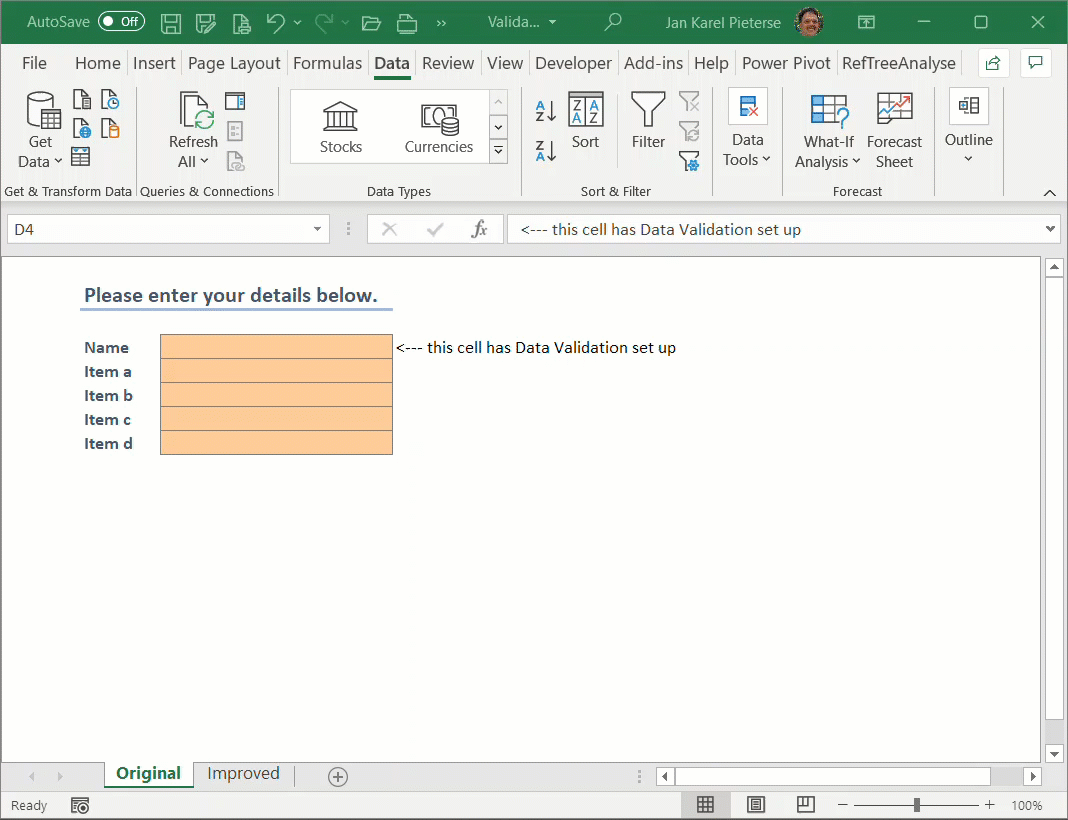

Excel Data Validation trick

Download

I prepared a sample workbook for you to download.

Cell styles

When you design a data entry form in Excel it is a good idea to use cell styles to clarify the purpose of the cells on the entry form and to direct the user to where his attention is needed.

A simple data entry form might look like this:

A simple data entry sheet in Excel

Looks nice doesn't it.

Note that I did not apply any manual formatting, I used the built-in cell styles:

Cell styled used

Now as happy I might be that Microsoft decided to provide some pre-defined styles, they didn't quite finish the job properly. Look at the formatting options of this "Input style":

Input style properties

See what's wrong? No? They didn't set protection! So if I decide to password-protect my worksheet, all my input cells are locked. This is why I always add a user-defined style called "InputUnprotected". And perhaps a couple more if I need various different number formats to match what needs to be entered. One for each input type:

  • InputUnprotectedNumber
  • InputUnprotectedDate
  • InputUnprotectedText

OK, enough about styles. Want to learn more? Read on about styles here.

Proper labelling

You might think this goes without saying, but I've seen plenty data entry sheets where it is left to the fantasy of the user what information is expected to go into which cells. My screenshot at the top lacks inspiration a bit, only the first cell is labelled more or less clear. Though you might argue that just asking for a name is ambiguous at best :-)

Data Validation

Now to the fun part of this article. Data Validation. Lets click the cell next to Name and open the DV dialog. Forget about its first tab for now, you already know what that one's for. In comes the "Input Message" tab!

Input Message tab of Data Validation

That looks pretty useful, does it not? You can set a Title and an Input message, with which you can show elaborate help! But there is a problem. It is elaborate and the message doesn't go out of the way:

Data Validation Input Message displaying

Also, the popup covers the remaining input cells and is very distracting, especially if the form contains many cells to fill. And it cannot be dismissed. You can drag it out of the way, but that causes all subsequent popup messages to appear in the same place. Luckily Excel does not save that position, so next time you open the file the popup appears in its nice in-your-face position again.

A better way, no popup but help when needed

I resolved that issue in my sample file in an interesting way, which I am sharing with you below. You did notice the tiny (i) "icons" next to the data entry cells, didn't you? Here is how I created them.

  • Make sure there is an empty column next to your data entry cells
  • Create a copy of the Heading 4 style (right-click, choose Duplicate)
  • Name the new style i (yes just i, I'll explain below)
  • change its properties so the Font tab looks like this:

Style formatting dialog

  • Uncheck the Style's Locked box, we need to be able to click the cell.
  • Now look at the Styles drop-down again:

Cell Styles drop-down

Notice the nice i icon? The boxes in the Styles drop-down give an impression of what a cell looks like after applying the style. This includes the Font. If I would have used a regular name for this i style, the drop-down would have looked like this (I used 'SomeNameForTheStyle'):

Cell Styles drop-down 2

Given that the Webdings i character looks like the information icon I thought using i for its name might be good!

  • So. Let's enter an i in the cells next to the entry cells. Then apply the new i style to them.
  • Now select the first i-cell and open the Data Validation dialog and enter the pop-up information. Just like shown above.
  • Also, to prevent people from changing the i to something else, setup the first tab of the DV dialog to this:

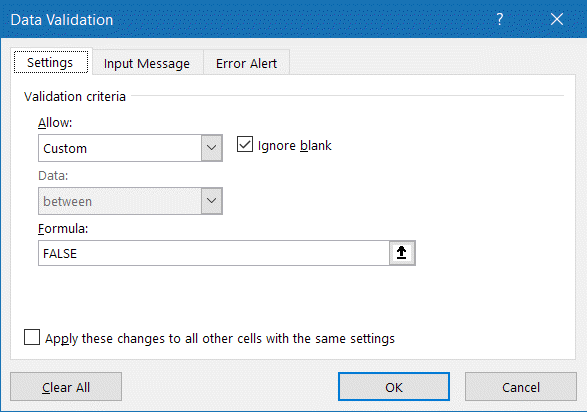

    Data Validation settings to prevent changes
    The FALSE formula prevents you from entering anything into the cell. That is how a custom formula in the Data Validation works: If the formula evaluates to TRUE (or 1), the entry is acceptable, otherwise it is not.
    I know, I know, you can still hit the del key and the cell will be empty. Copying and pasting will also do its harm. But this is a good start.

Finally I want to add a nice touch to this new icon: I want to see this when my mouse passes over it:

Click Here For Help

This is done like so:

  • Select the cell
  • Click Insert, Link:
    Link Button on Insert tab
  • Set it to these settings:

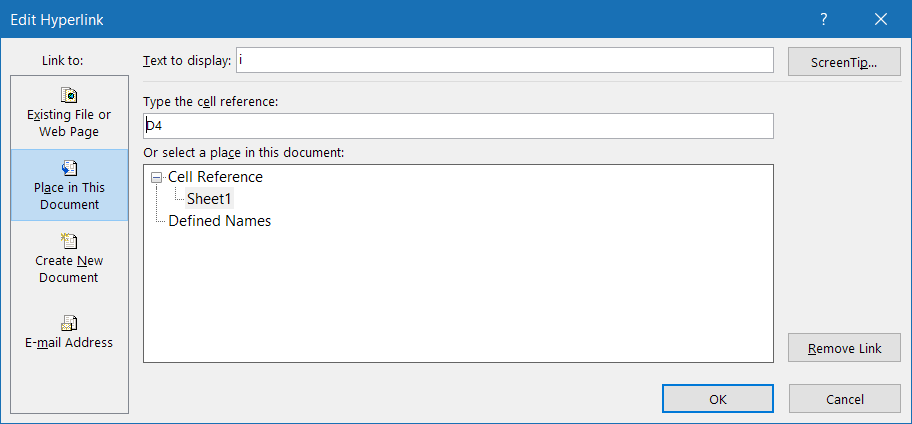

    Link settings
    Note the Text to display and that the cell reference equals the cell I am adding the link to. We don't want Excel to jump to another cell, it should stay put.
  • Click the Screentip button and enter this:
    Link Screentip settings
  • Click OK twice.
  • Curse because Excel changed the cell-style to Hyperlink so you have to re-apply the i-style again

You can avoid having to apply the cell style twice by reversing the order: first define the hyperlink, then set up the data validation and cell style.

  • Cheer, because now your data entry form looks like this if your user clicks an i:

    End result

Comments

Showing last 8 comments of 14 in total (Show All Comments):




Comment by: Karl Hoitsma (23-4-2018 20:43:01) deeplink to this comment

Nice work.
Thanks for presenting this; thanks for sharing.


Comment by: Jacques Raubenheimer (30-5-2018 03:46:51) deeplink to this comment

Great tip! Thanks.
The one limitation is the relatively sparse amount of text you can add in the data validation input message, but it does force one to think carefully about what to say.
You could improve the workflow by creating the hyperlink first, and then setting the style and the data validation, so that the style does not have to be re-set, although if you copy the cell to another point to save some time, then adjusting the hyperlink will require the style to be reset again.


Comment by: Jan Karel Pieterse (30-5-2018 10:32:25) deeplink to this comment

Hi Jacques,

Thanks for the tip!


Comment by: Andrew Engwirda (20-8-2021 03:40:00) deeplink to this comment

This is amazing Jan. It's great how you combine Data Validation, Hyperlinks and Webdings to set up a very professional "help" message. And I have to laugh at how the default Input style is set up with regards to protection. Oops!


Comment by: Jan Karel Pieterse (20-8-2021 16:05:00) deeplink to this comment

Hi Andrew,

Thanks!


Comment by: Helge Larsen (26-9-2022 21:43:00) deeplink to this comment

Really a good idea!
Since I expect to use it in the future, I have implemented it in VBA.
See the next two comments - because of the 2000 characters limit.


Comment by: Helge Larsen (26-9-2022 21:50:00) deeplink to this comment


Option Explicit

Sub HVL_Display_Cell_Info()

    Const StName As String = "i"
    Const aValue As String = "i"

    Dim Answ As String
    Dim Arr() As String
    Dim aTitle As String
    Dim N     As Integer
    Dim i     As Integer
    Dim aMess As String
    Dim Addr As String

    ' Enter Help text
    Answ = InputBox("Enter Title and Body Text!" & vbCr & vbCr & _
                    "Use backslash '\' to separate Title and Body Text" & vbCr & _
                    "and to separate individual lines in Body Text.", _
                    "Specify cell info")
    If Answ = "" Then Exit Sub

    Arr = Split(Answ, "\")
    N = UBound(Arr)

    aMess = ""
    aTitle = Arr(0)

    For i = 1 To N
        If i > 1 Then aMess = aMess & vbLf
        aMess = aMess & Arr(i)
    Next i
    If aMess = "" Then aMess = " "

    ' Make the special style
    If Not HVL_Style_Exists(StName) Then HVL_Make_Special_Style (StName)

    'Insert hyperlink
    Addr = "'" & ActiveSheet.Name & "'!" & ActiveCell.Address(False, False)
    ActiveSheet.Hyperlinks.Add Anchor:=ActiveCell, _
                             Address:="", _
                             SubAddress:=Addr, _
                             ScreenTip:="Click here for help", _
                             TextToDisplay:=aValue

    ' Cell value and style
    ActiveCell.Value = aValue
    ActiveCell.Style = StName

    ' Data validation used to display Help text
    With ActiveCell.Validation
        .Delete
        .Add Type:=xlValidateCustom, _
             AlertStyle:=xlValidAlertStop, _
             Operator:=xlBetween, _
             Formula1:="FALSE"
        .IgnoreBlank = True
        .InCellDropdown = True
        .InputTitle = aTitle
        .InputMessage = aMess
        .ErrorTitle = ""
        .ErrorMessage = ""
        .ShowInput = True
        .ShowError = True
    End With

End Sub


Comment by: Helge Larsen (26-9-2022 21:51:00) deeplink to this comment


Function HVL_Style_Exists(ByVal aStyleName As String) As Boolean

    Dim aStyle As Style

    On Error GoTo ErrLab
    Set aStyle = ActiveWorkbook.Styles(aStyleName)
    On Error GoTo 0
    HVL_Style_Exists = True
    Exit Function

ErrLab:
    On Error GoTo 0
    HVL_Style_Exists = False

End Function

Sub HVL_Make_Special_Style(ByVal aStyleName As String)

    Dim aStyle As Style

    Set aStyle = ActiveWorkbook.Styles.Add(Name:=aStyleName)

    With aStyle
        .IncludeNumber = True
        .IncludeFont = True
        .IncludeAlignment = False
        .IncludeBorder = False
        .IncludePatterns = False
        .IncludeProtection = True
        .NumberFormat = "General"
         With .Font
             .Name = "Webdings"
             .Size = 11
             .Bold = False
             .Italic = False
             .Underline = xlUnderlineStyleNone
             .Strikethrough = False
             .ThemeColor = 4
             .TintAndShade = 0
             .ThemeFont = xlThemeFontNone
         End With
        .HorizontalAlignment = xlGeneral
        .VerticalAlignment = xlBottom
        .ReadingOrder = xlContext
        .WrapText = False
        .Orientation = 0
        .AddIndent = False
        .ShrinkToFit = False
        .Borders(xlLeft).LineStyle = xlNone
        .Borders(xlRight).LineStyle = xlNone
        .Borders(xlTop).LineStyle = xlNone
        .Borders(xlBottom).LineStyle = xlNone
        .Borders(xlDiagonalDown).LineStyle = xlNone
        .Borders(xlDiagonalUp).LineStyle = xlNone
         With .Interior
             .Pattern = xlNone
             .TintAndShade = 0
             .PatternTintAndShade = 0
         End With
        .Locked = False
        .FormulaHidden = False
    End With

End Sub
